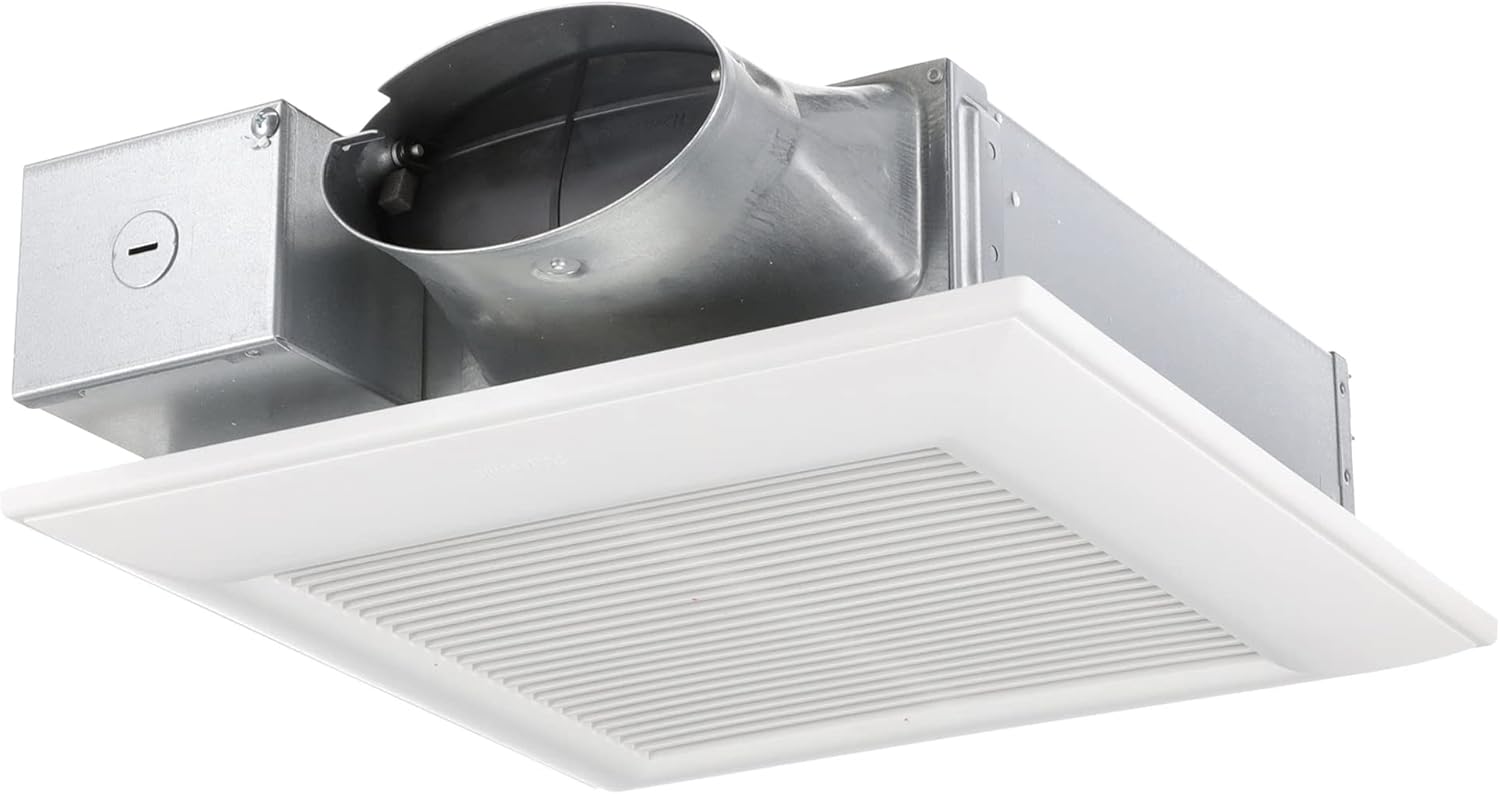

Panasonic FV-0510VS1 WhisperValue DC Ventilation Fan, 50-80-100 CFM , White

Features

• Precision spot ventilation fan, ideal for residential construction (single and multifamily) and manufactured homes
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)

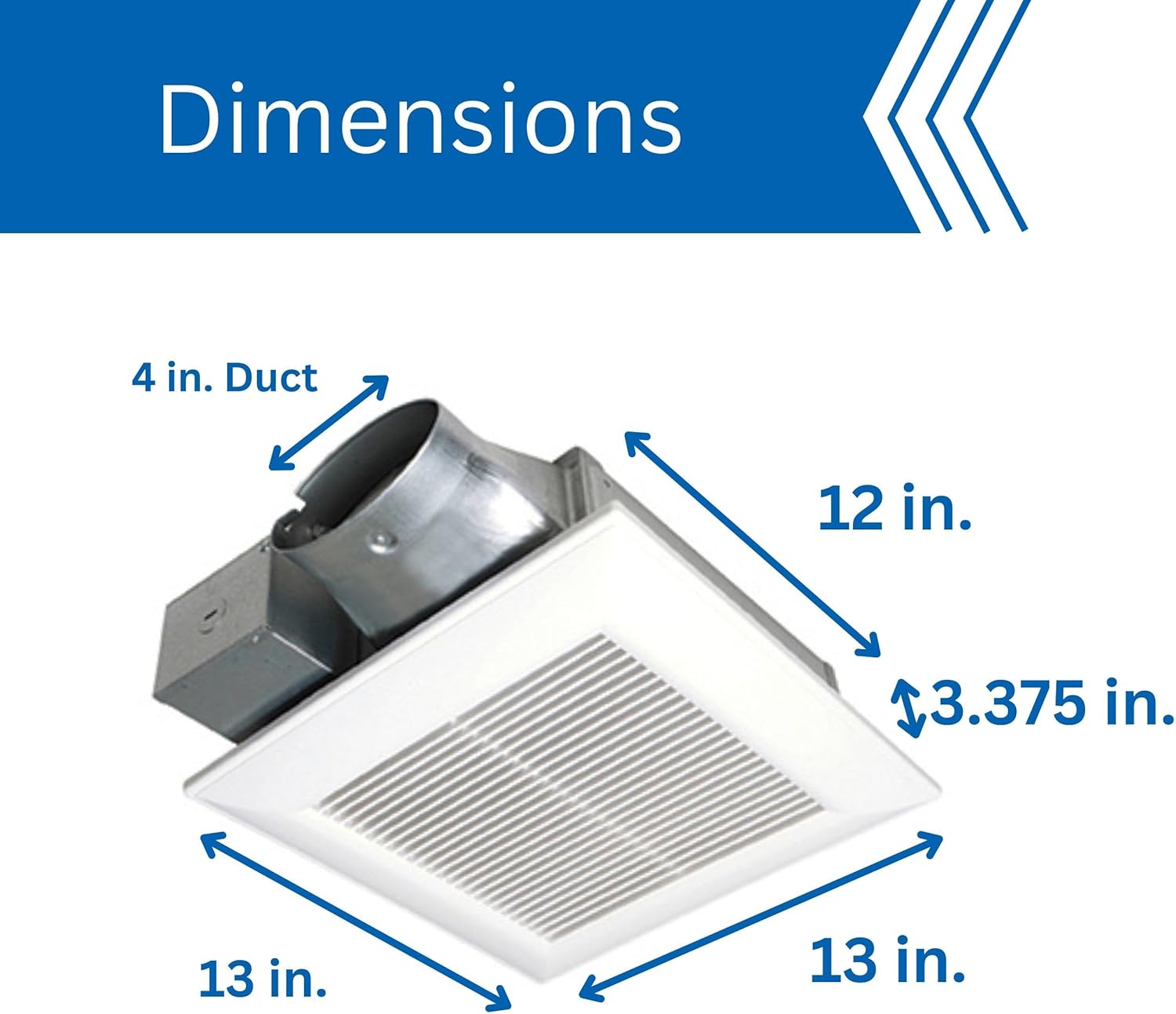

• WhisperValue® DC FV-0510VS1 Fan is the perfect multifamily solution, ideal for single-family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan, it fits in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.
• The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run. It automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

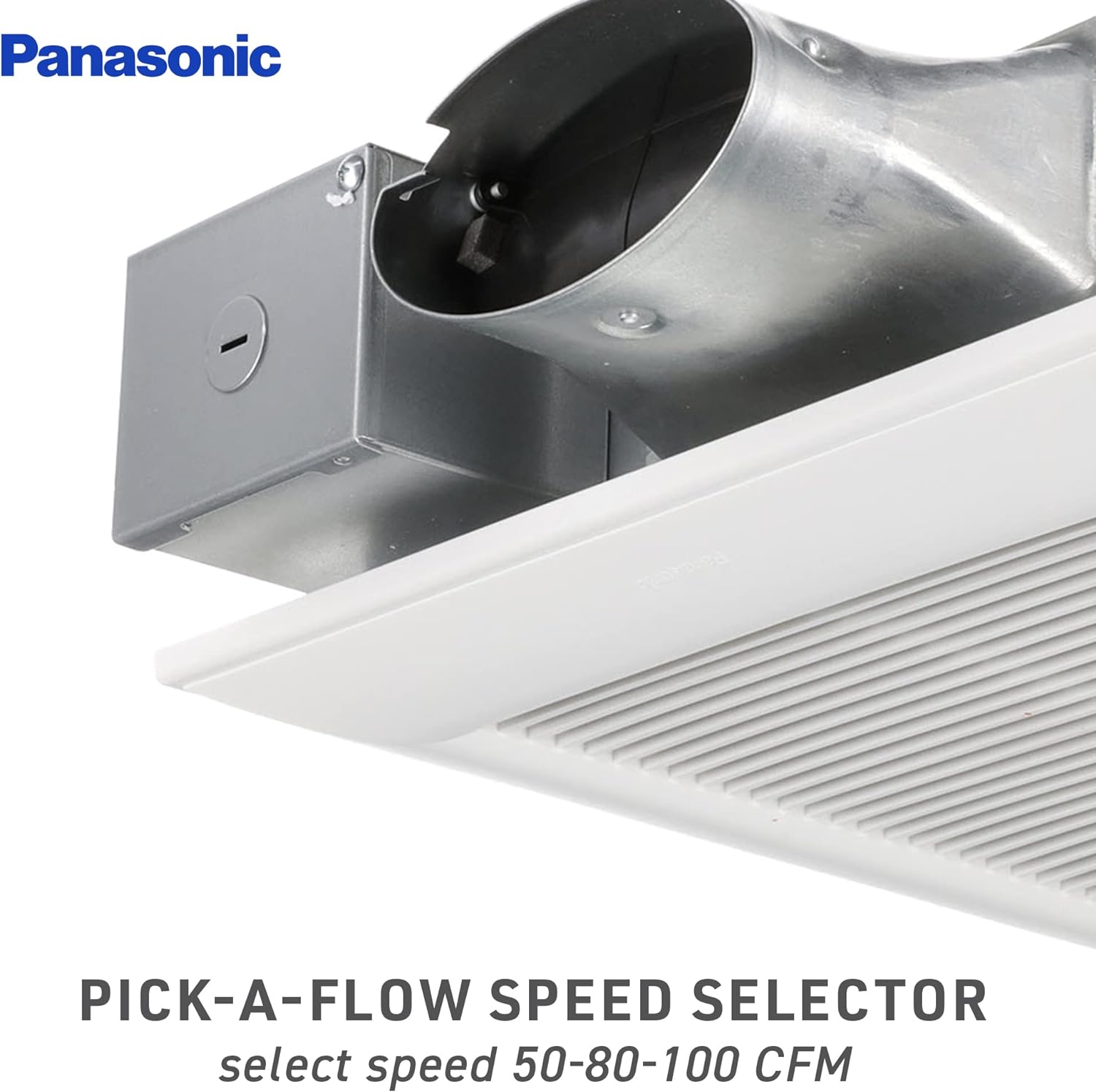

• Built-in Pick-A-Flow™ airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch. Choosing the proper CFM level gives you the flexibility and assurance that one fan will satisfy various ventilation design requirements and perform as promised, even with a complicated duct run.
• The skinny profile WhisperValue DC fan opens up options for where you can install the fan, which is UL-listed for ceiling or wall mount. Installing a vent fan in a wall means you won't need to cut a hole in the fire-rated ceiling and buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.
• You don't want to replace little things like a vent fan when you have a household or business to run. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler, so they last longer. They are also much less likely to overheat, which results in motor failure. The motor is also equipped with a thermal-cutoff fuse.
• Unique L-shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable and can be positioned to either the left or right side stud for optimal fan placement—optional four-in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* gives you duct layout and design flexibility. Panasonic fans are also UL-listed for tub/shower enclosure (install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories tab for more information on the four. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately.
• Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, feature high-performance motors, and improved blade design, providing better performance and longer life.

Specifications

• Air Volume Exhaust (CFM): 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
• Master Carton Dimensions (HxWxD): 6.89 x 14.25 x 16.73
• CFM: 50-70. 80-110
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
• Construction Type: Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
• Current (Amps): 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
• Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
• Duct Diameter: 4" Oval
• Energy Efficiency (CFM/Watt): 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
• ENERGY STAR® Certified: Yes
• Fan Type: Fan Only
• Grille Size (in sq.): 13"
• Industry: Residential. Light Commercial
• Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
• Motor Type (AC/DC): DC
• Mounting Opening (in sq.): 10-1/2"
• Mounting Options: Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL)
• Noise (Sones): 50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3
• Power Consumption (Watts): 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
• Power Rating (V/Hz): 120/60
• Product Family Name: WhisperValue DC
• Radiation Damper Available: Yes
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• Warranty: 6 year DC Motor, 3 Year Parts
• Master Carton Gross Weight (lbs.): 8.82
