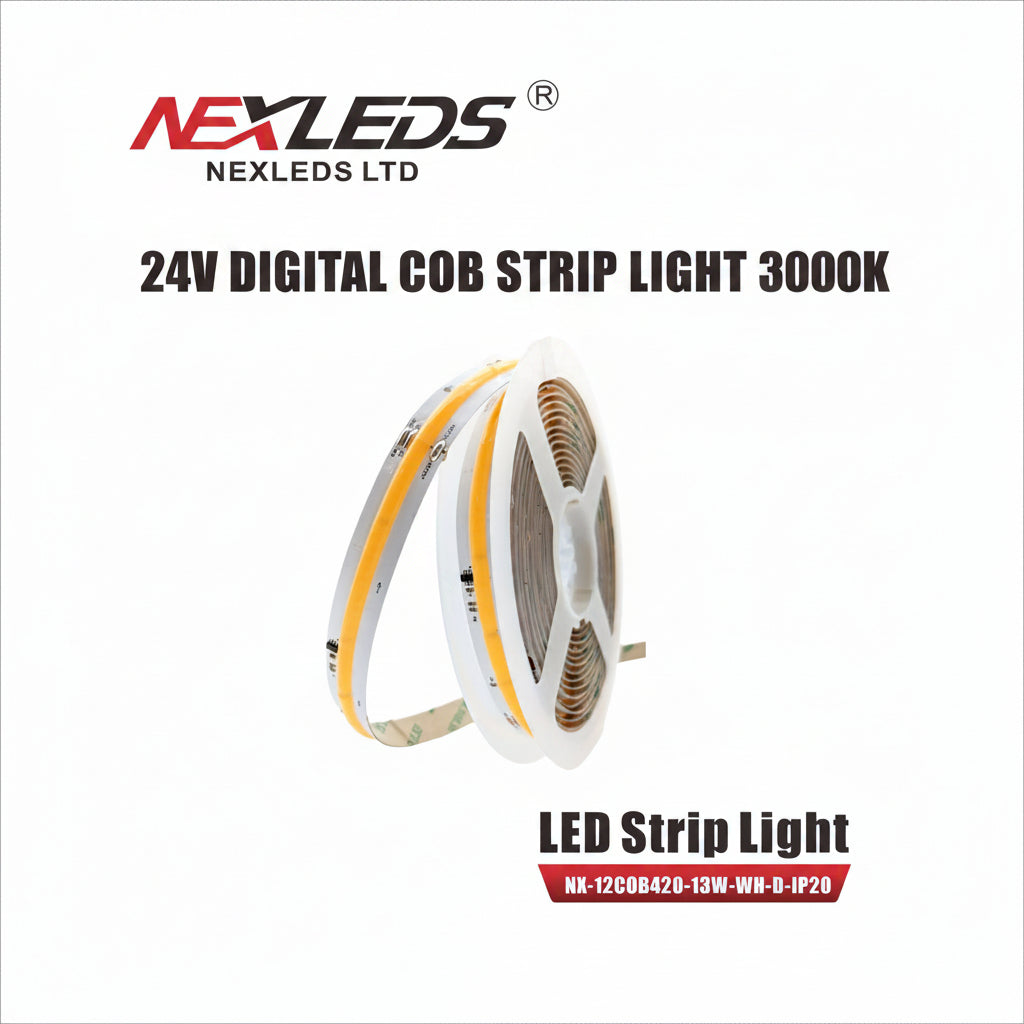

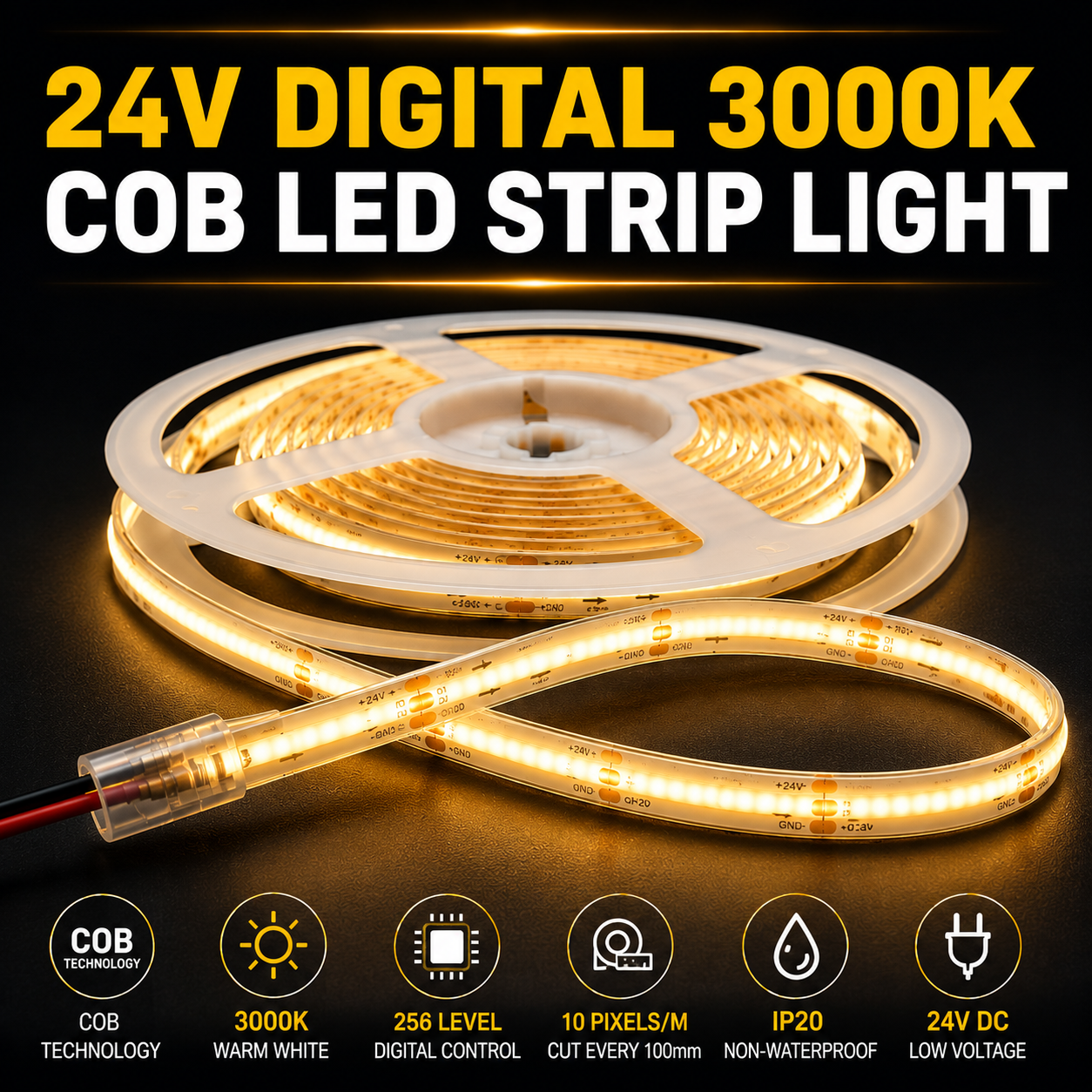

NEXLED DIGITAL 3000K LED COB Strip Light — ADDRESSABLE,CHASE SERIES,13W/M, 24V, 5M Roll (UL Listed)

NEXLEDS DIGITAL 3000K LED COB Strip Light — 13W/M, DC 24V, 770 L/M, 12MM PCB, 5-meter Roll

12mm IP20 Digital 3000K Chase Series 13W COB Tapelight

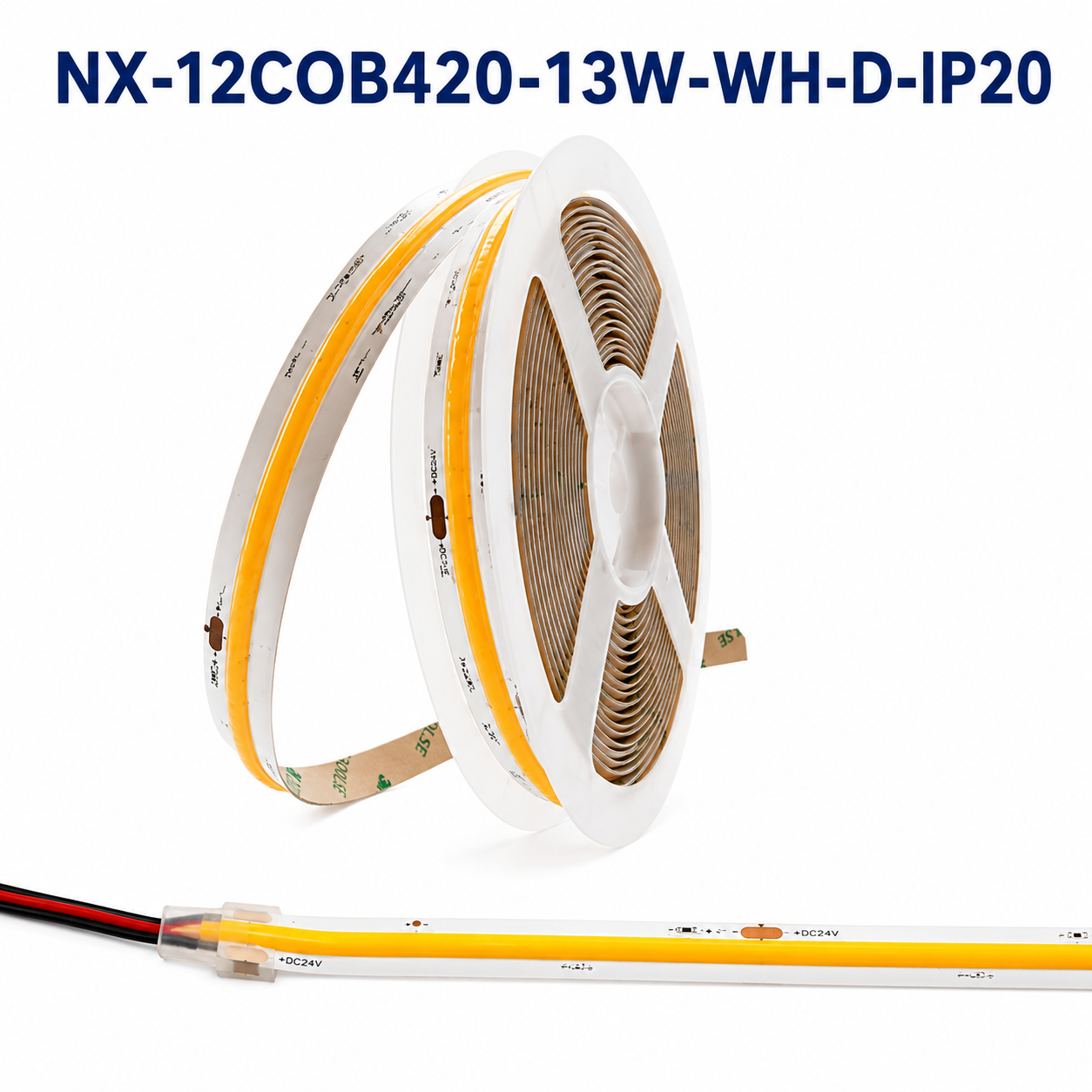

Model: NX-12COB420-13W-WH-D-IP20

The NEXLEDS LED Strip Light is a pure white digital COB LED strip designed to deliver smooth, dotless lighting with consistent brightness throughout the strip. Built with Sanan COB chips and a double-layer FPC construction, it provides improved heat dissipation, flexibility, and stable performance for residential and commercial lighting applications.

Its digital COB design creates a clean, continuous line of light while maintaining consistent brightness over extended runs. With a compact width of 12 mm and a flexible construction, it is suitable for a variety of indoor decorative lighting installations.

Features

• Pure white digital LED strip with dotless COB design
• 256-level gray chip for delicate lighting effects
• Consistent brightness and mixing effects over 8 meters
• 10 pixels per meter
• Cutting distance: 100 mm
• Double-layer FPC for improved voltage balance
• Excellent heat dissipation
• Flexible strip construction

Specifications

• Product Name: LED Strip Light
• Model No.: NX-12COB420-13W-WH-D-IP20
• Specification: DC24V, 13W/M
• Working Temperature: -20~50°C
• CRI (RA): >80
• Colour: White Color
• Light Source: Sanan COB Chip
• Lifetime: 30,000 hrs
• Beam Angle: 360°
• Product Size: 5000 × 12 mm
• Cutting Length: 50 mm
• IP Rating: IP20
• Application: Home, Shop, Hotel
• Warranty: 2 Years
• Standard: UL
• CCT: 3000K
• Lumen Output: 770 LM/M

Applications

Suitable for:

• Residential lighting
• Decorative lighting
• Home
• Shop
• Hotel

Installation Notes

• Maximum running length: 8 meters with one-end power.
• For runs longer than 8 meters, connect in parallel.
• Ensure the total wattage of the LED strip is less than 80% of the power supply's maximum output.
• Match the PCB polarity markings (+ and -) during installation.
• Always make sure that digital LED strips are directional and installed, with the arrow on the PCB pointing away from the controller. If they are cut, add the end connector to the cut end.
• Another important point is to always follow the LED strip for power, data, and ground connections. Do not use the wire colours.
