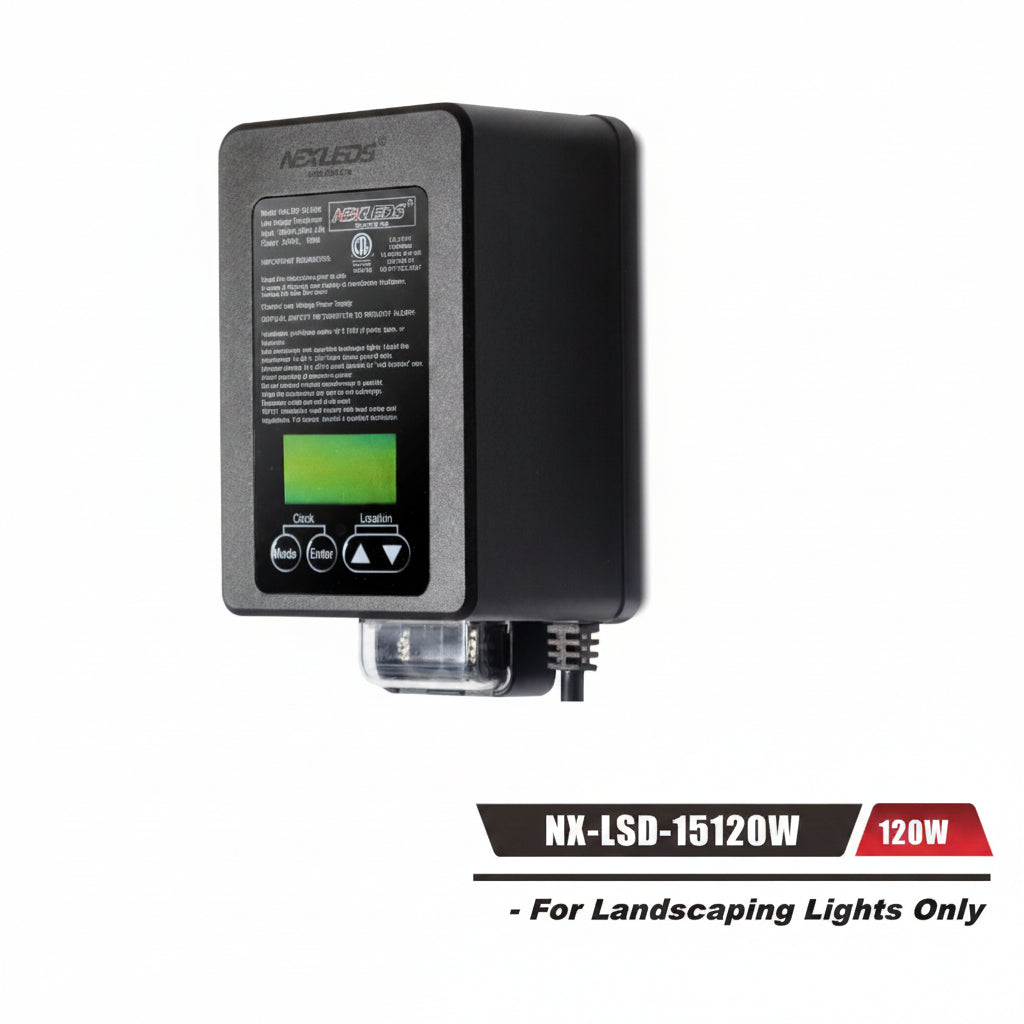

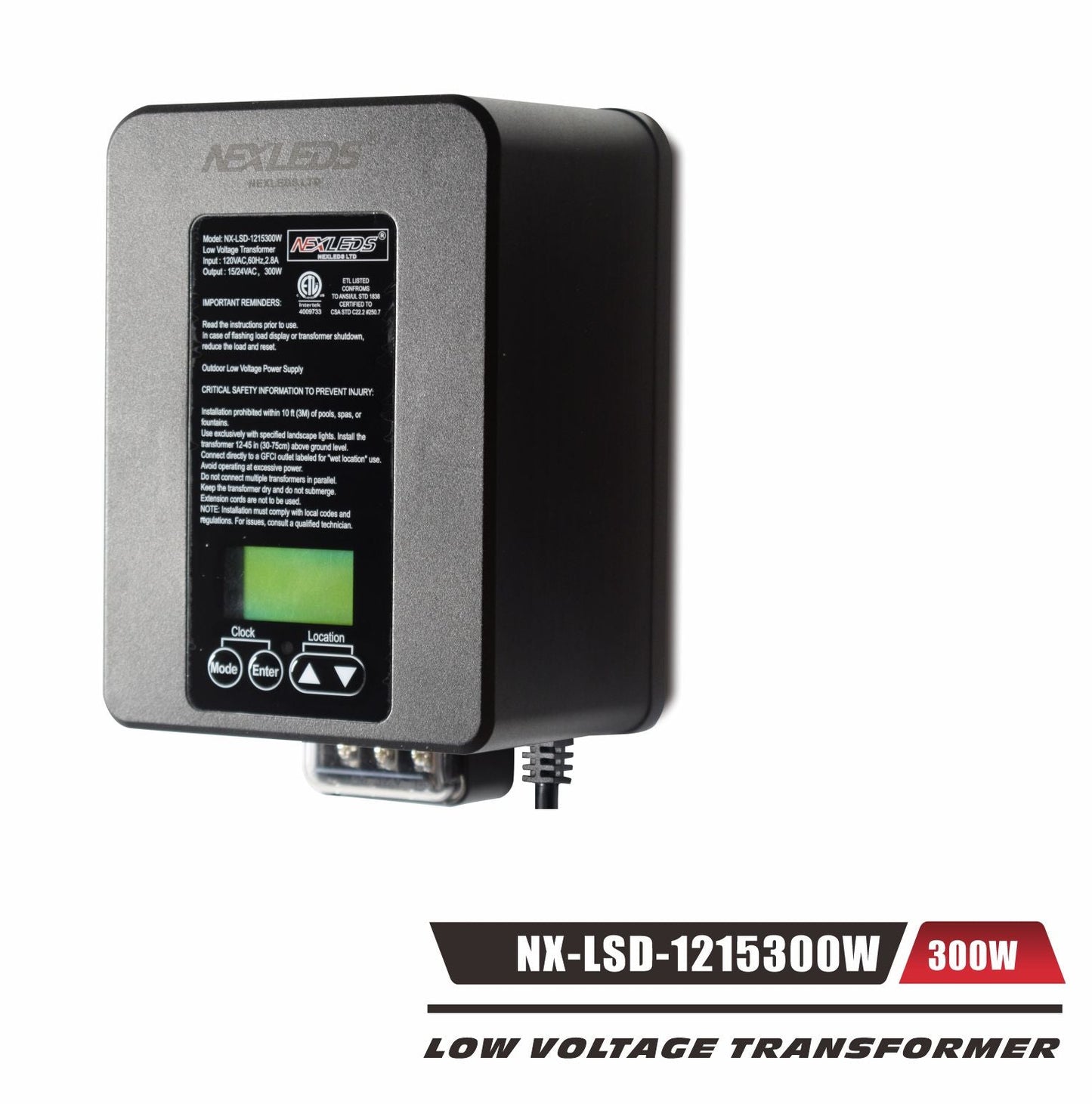

Nexled Low Voltage Transformer, 120W/300W, 24V AC,Timer + Photocell, IP65 (ETL)-for Landscaping lights only.
Nexled Low Voltage Transformer, 120W/300W, 24V AC,Timer + Photocell, IP65 (ETL)-for Landscaping lights only.
Regular price
$99.00 CAD
Regular price
Sale price
$99.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
NEXLEDS Low Voltage Transformer — Timer + Photocell, 9 Operating Modes
Outdoor-rated low-voltage transformer for landscape and low-voltage lighting systems. Built-in timer and photocell logic with 9 operating modes (dusk-on/dawn-off, astro timer, timed relay, and more). IP65 weatherproof PA66 housing with digital display. Available in 120W (24V) and 300W (15/24V) versions.

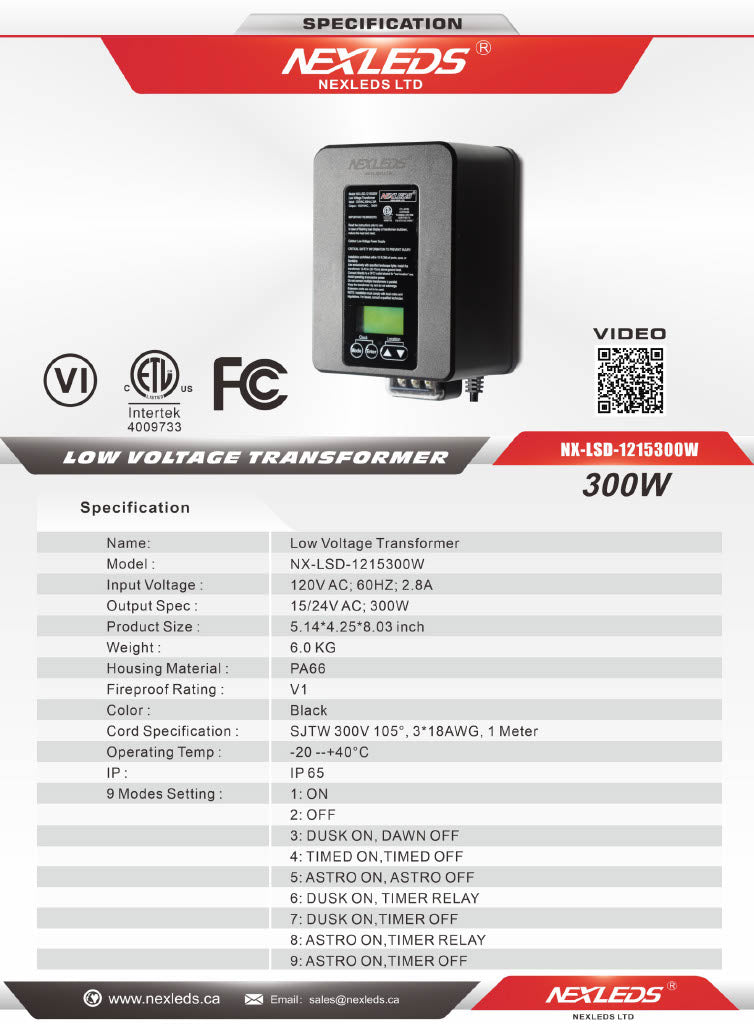

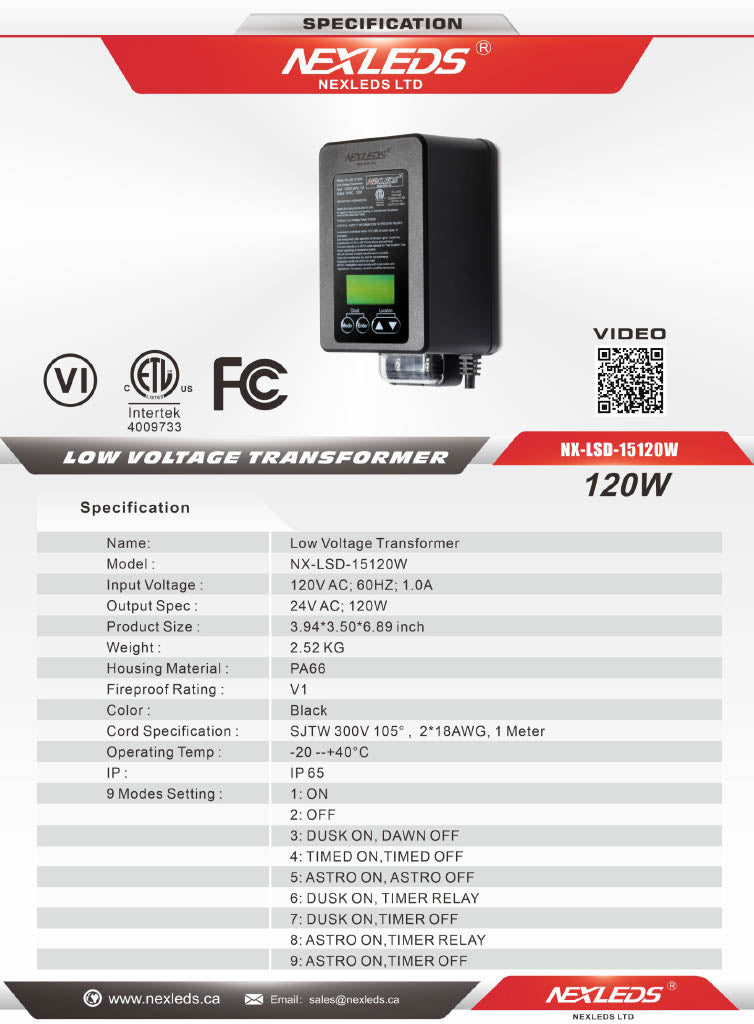

Specifications
| Models | NX-LSD-15120W (120W) / NX-LSD-1215300W (300W) |
| Input | 120V AC; 60Hz — 120W: 1.0A · 300W: 2.8A |
| Output | 120W: 24V AC; 120W · 300W: 15/24V AC; 300W |
| Product Size | 120W: 3.94×3.50×6.89″ · 300W: 5.14×4.25×8.03″ |
| Weight | 120W: 2.52 kg · 300W: 6.0 kg |
| Housing Material | PA66, fireproof rating V1, Black |
| Cord | SJTW 300V 105°, 18AWG, 1 meter |
| Operating Temp | -20~+40°C |
| IP Rating | IP65 |
| 9 Modes | ON · OFF · Dusk On/Dawn Off · Timed On/Timed Off · Astro On/Astro Off · Dusk On/Timer Relay · Dusk On/Timer Off · Astro On/Timer Relay · Astro On/Timer Off |
| Standard | ETL (Intertek), FCC, Efficiency Level VI |
Features
- 9 automated modes with photocell and astronomical timer
- IP65 weatherproof for outdoor landscape systems
- Digital display with easy mode programming
- ETL listed and FCC compliant
