- Good heat dissipation
- Blade design of copper alloy contacts, good conductivity
- Super high impact resistance and thermal stability Cover pans are made of high-quality polycarbonate
- Chemical corrosion resistance Fingerprint-resistant zinc-plated mounting brackets
- Grounding One-piece grounding design
- Security doors are designed to prevent people's accidental exposure.
product specification

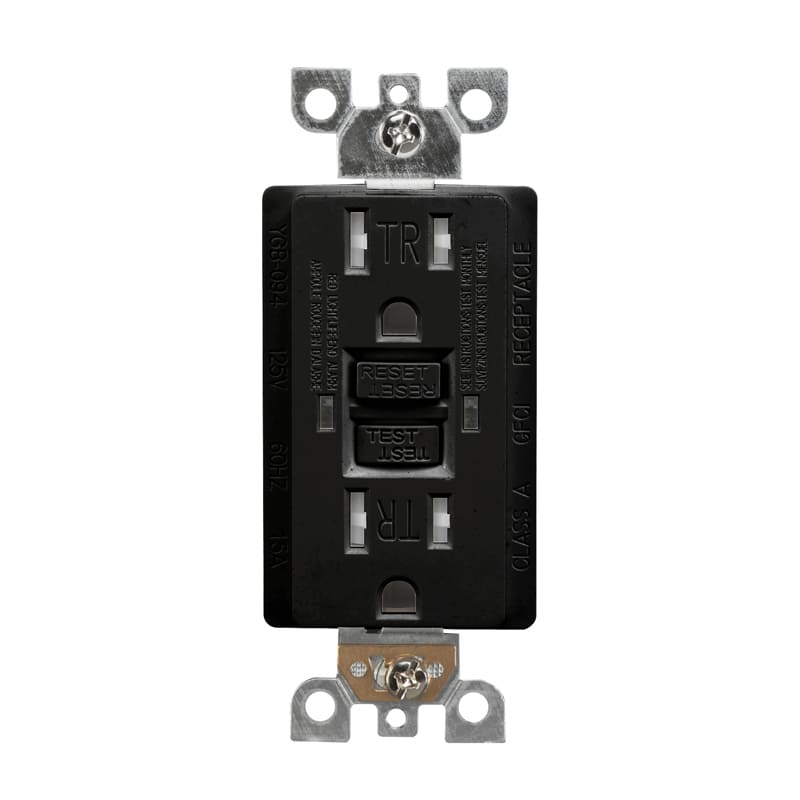

- Model No.:YGB-094
- Temperature:-35°C~66°C
- Insulation Resistance:>50MΩ (DC500V)
- Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
- Surge current:6000V/3000A 6000V/10KA
- Tripping Threshold &Tripping time:5mA & 25m
- Rated Voltage:125V/60Hz
- Rated Current:15A
- Housing material: flame retardant grades UL94-V2
- Standard:UL498 UL943 CSA-C22.2 No.42
- Unloaded plug:≥5000Sec Loop detection
- Type: Tamper Resistance
