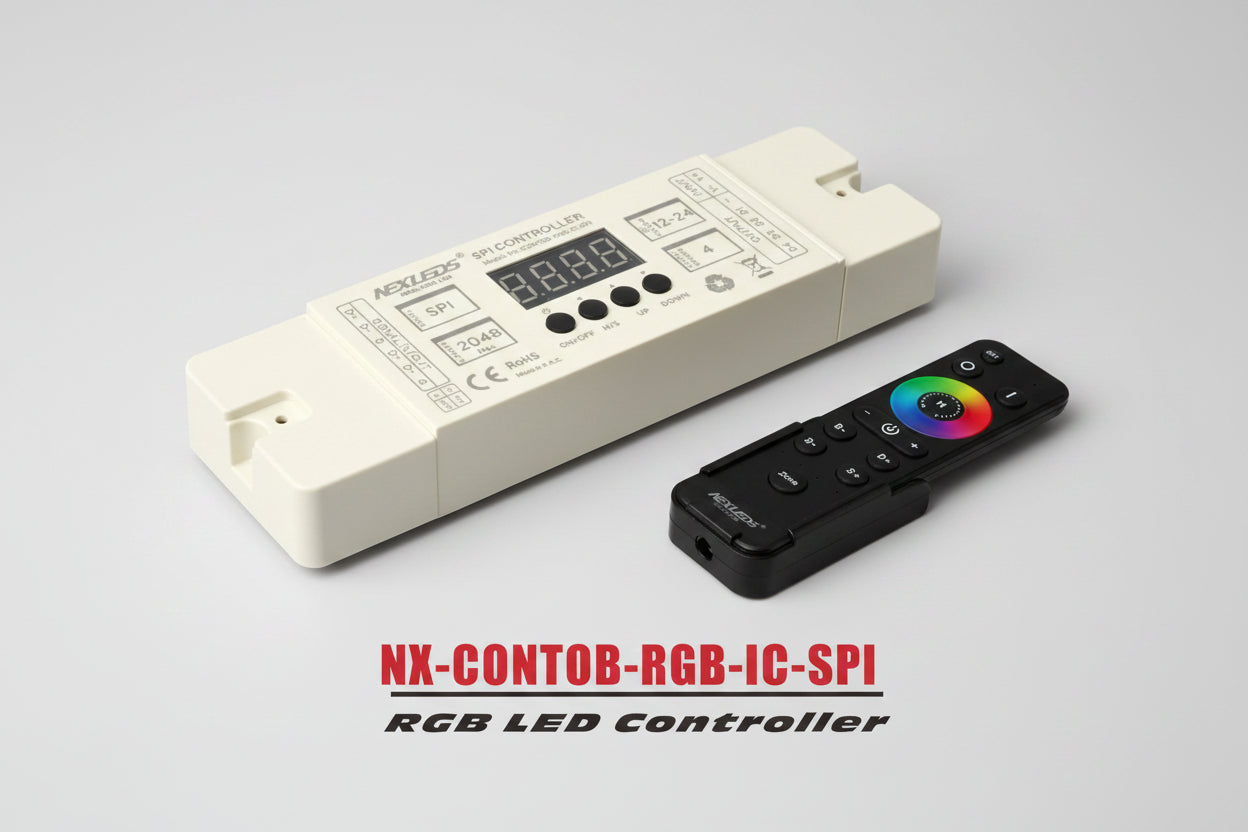

• NEXLEDS RGB LED controller, SPI addressable, 2.4G RF

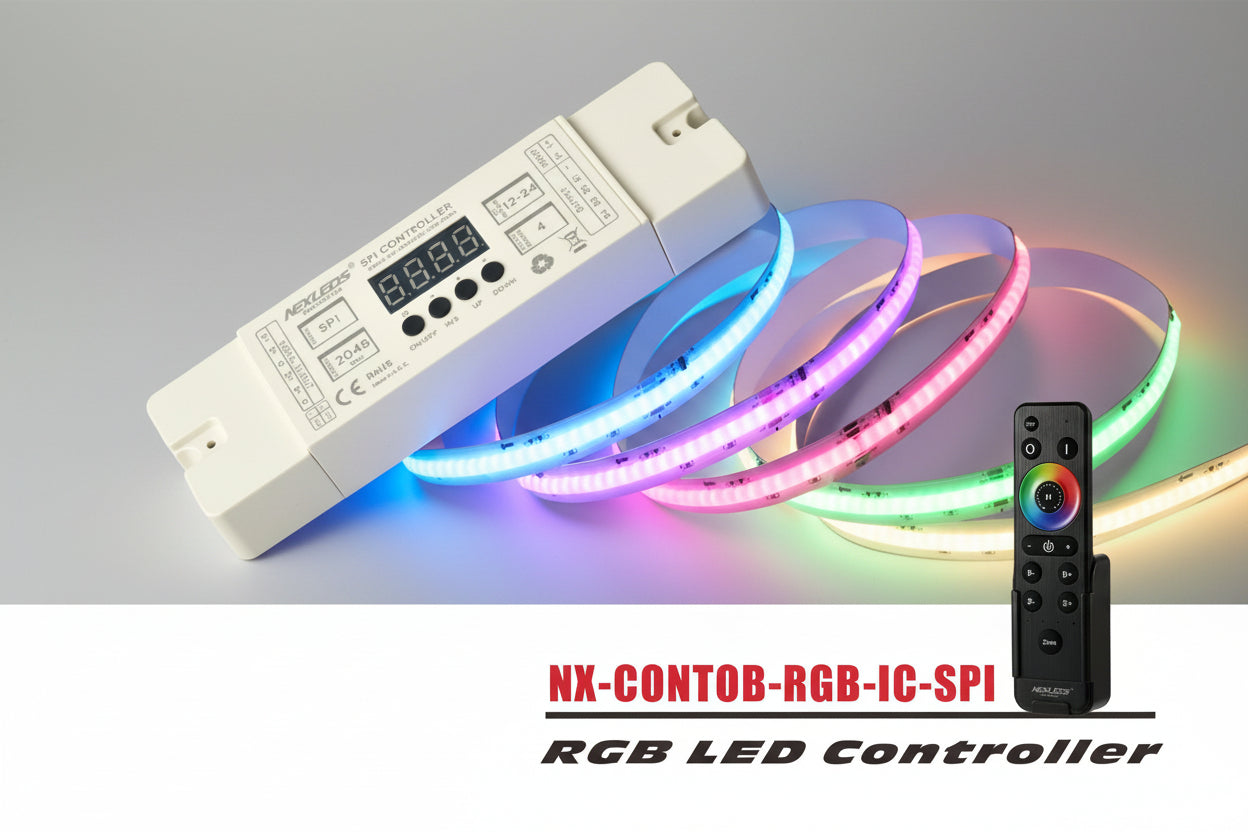

  • NexLeads NX-Contob-RGB-IC-SPI RGB LED controller shown with a white rectangular controller, colorful coiled LED strips in pink, blue, and green, and a black remote control on a dark background.

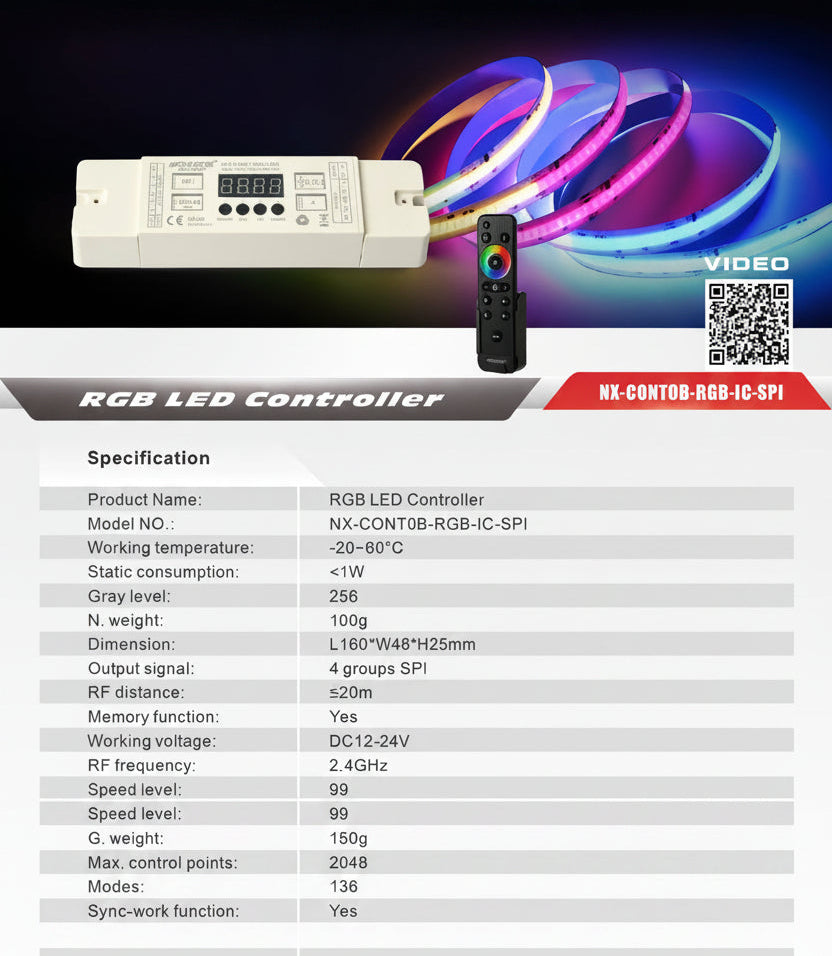

  • Specification sheet for the NEXLEDS NV-CONT18-RGB-IC-SP1 RGB LED controller, showing a white rectangular controller unit, a black remote control, and colorful RGB light strips on a dark background, with a detailed spec table below.

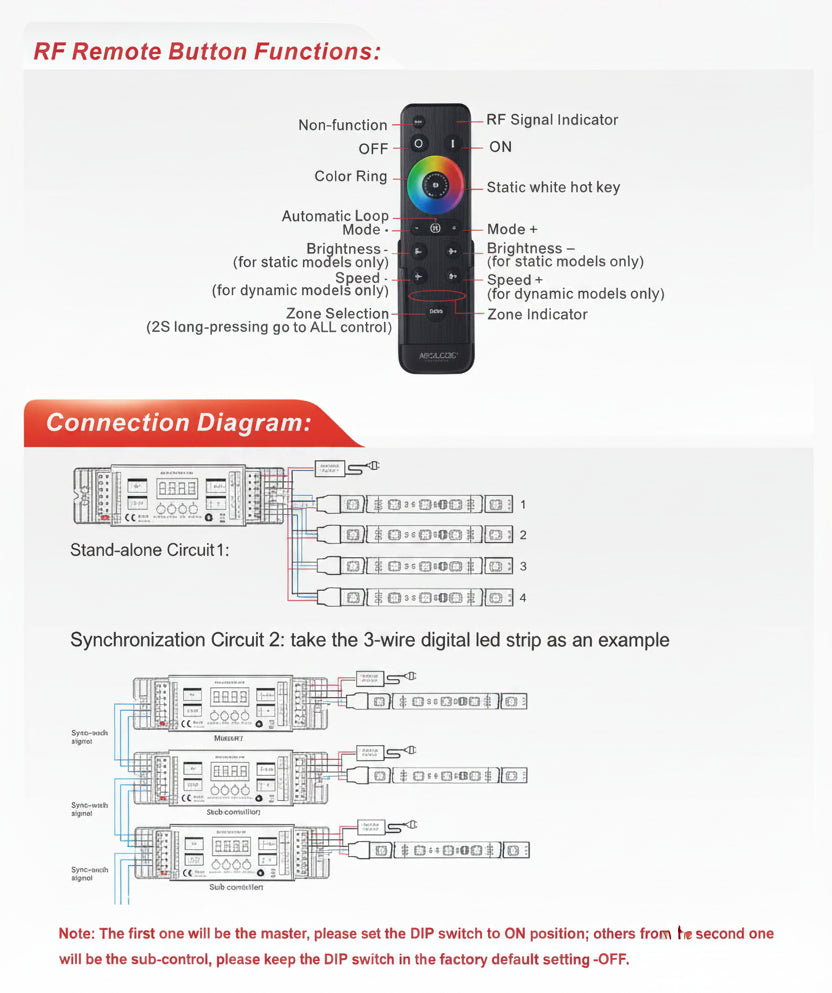

  • A technical specification sheet for the Nex leds RF Remote Button Functions, showing a black remote control with a color touch screen, connection diagrams, and labeled feature points on a white background with red Nex leds branding.
1 5

NEXLEDS

Nexled RGB LED Controller — SPI Addressable, 12-24V, 2.4G RF with Remote

Nexled RGB LED Controller — SPI Addressable, 12-24V, 2.4G RF with Remote

$60.00 CAD
$60.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

NEXLEDS RGB LED Controller — SPI / IC Addressable, DC12-24V

SPI digital controller for addressable (IC) RGB strips — drives up to 2048 control points with 136 built-in dynamic modes for chase, flow, and dream-color effects. Includes a 2.4GHz RF remote with up to 20 m range and memory function. The perfect match for the NEXLEDS RGB+IC COB strip line.

Specifications

Model No. NX-CONT0B-RGB-IC-SPI
Working Voltage DC12-24V
Output Signal 4 groups SPI
Max. Control Points 2048
Modes 136
Gray Level 256
Speed Levels 99
RF Frequency 2.4GHz
RF Distance ≤20 m
Memory Function Yes
Sync-Work Function Yes
Static Consumption <1W
Working Temperature -20~60°C
Dimension L160 × W46 × H25 mm
Weight 100 g (net) / 130 g (gross)

Features

  • Drives addressable RGB+IC / dream-color strips (SPI signal)
  • 136 dynamic modes, 99 speed levels, 256 gray levels
  • 2.4GHz RF remote included — up to 20 m control range
  • Memory + multi-controller sync functions
  • Pairs with NEXLEDS NX-12COB840-16W-RGBW-IC strip
