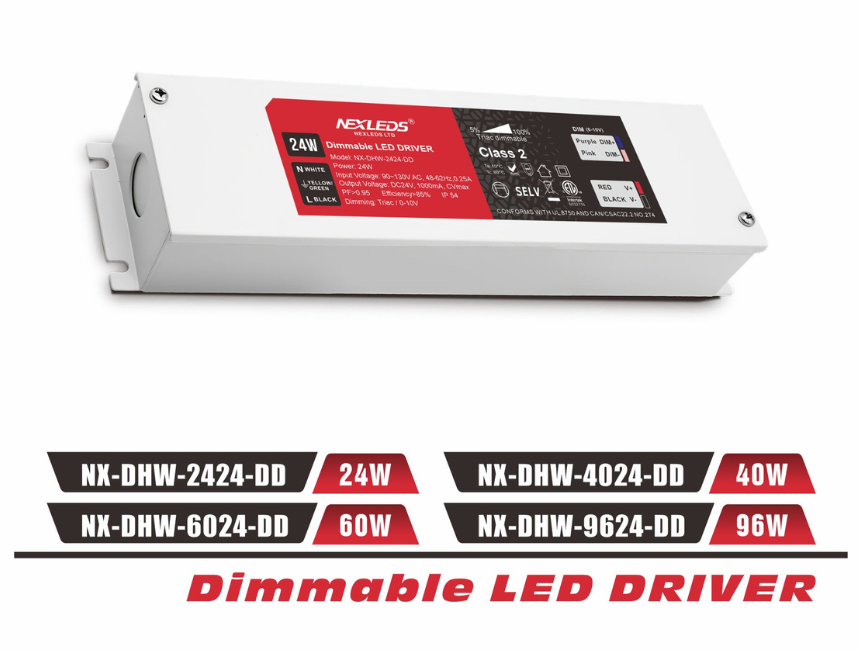

• NEXLEDS 24V LED driver, triac and 0-10V dimmable

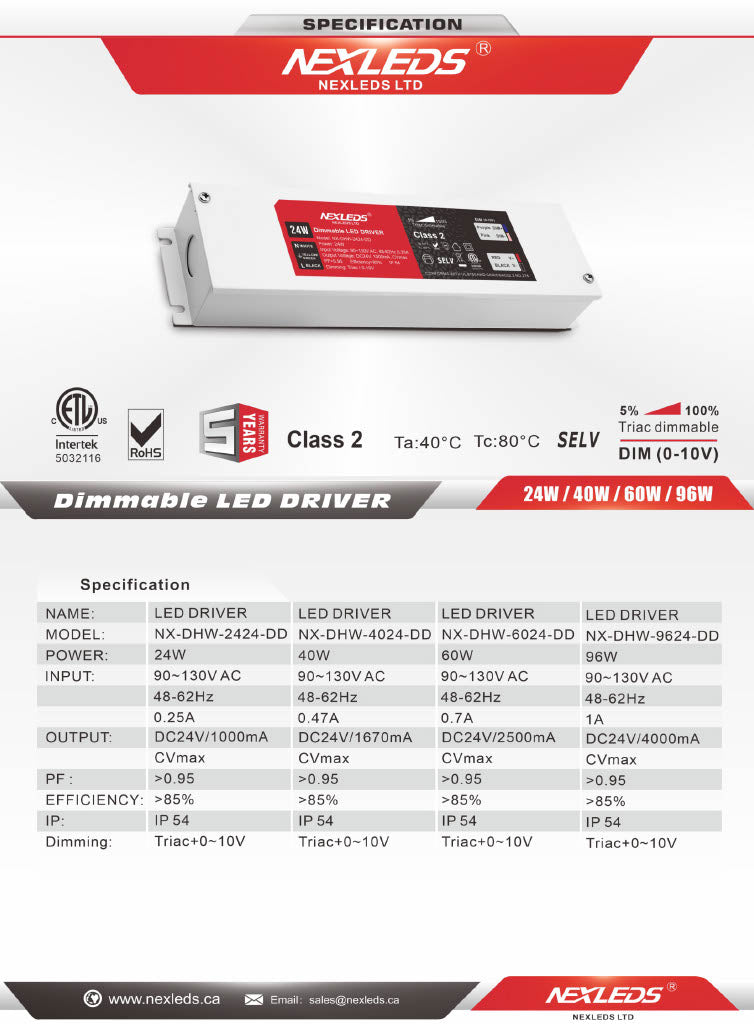

  • A technical specification sheet for Nexleds Dimmable LED Driver models NX-DHW-2442-DD, NX-DHW-4042-DD, NX-DHW-6042-DD, and NX-DHW-9642-DD. The document features a product photo of a white rectangular driver unit with red and black labels, various certification logos (CE, EMC, FCC, UL), and a detailed data table at the bottom listing power, efficiency, IP, and dimming ratings.
1 7

NEXLEDS

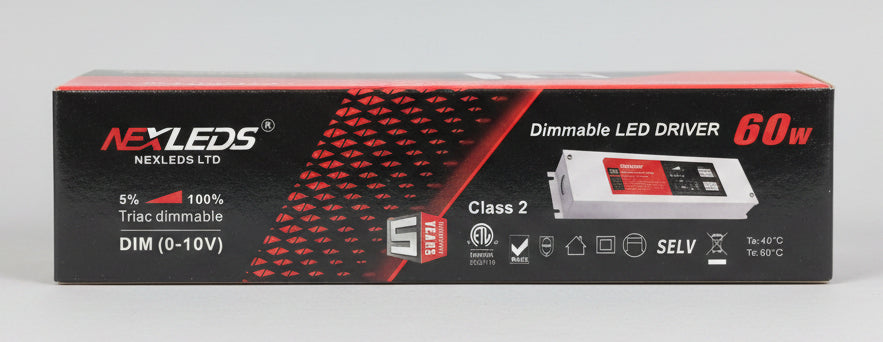

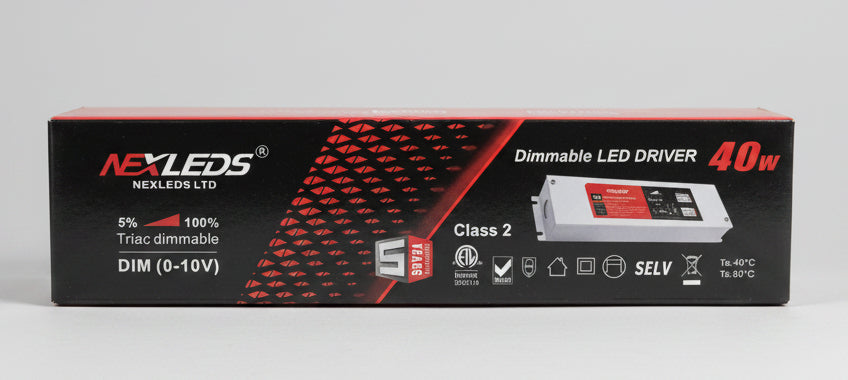

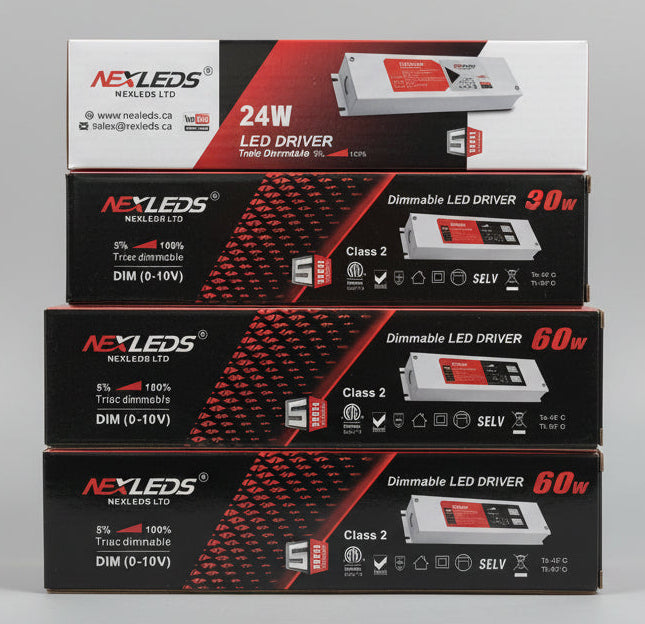

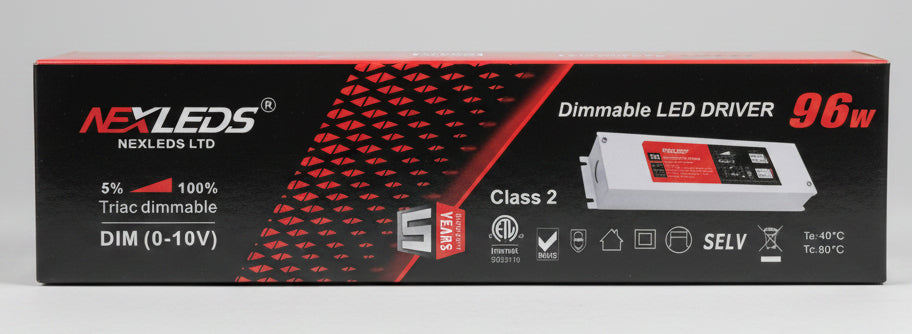

Nexled LED Driver — Class 2, 24V, Triac + 0-10V Dimmable, 24W-96W (ETL)

Nexled LED Driver — Class 2, 24V, Triac + 0-10V Dimmable, 24W-96W (ETL)

$45.00 CAD
$45.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Wattage

NEXLEDS Class 2 Dimmable LED Driver — DC24V, Triac + 0-10V

Compact Class 2 constant-voltage LED driver with smooth 5%–100% Triac and 0-10V dimming. IP54-rated with >0.95 power factor and 85%+ efficiency — the recommended power supply for NEXLEDS 24V strip lights. Available in 24W, 40W, 60W, and 96W.

Specifications

Model Series NX-DHW-2424-DD / NX-DHW-4024-DD / NX-DHW-6024-DD / NX-DHW-9624-DD
Wattage / Output Current 24W (1000mA) · 40W (1670mA) · 60W (2500mA) · 96W (4000mA)
Input 90~130V AC, 48-62Hz
Output DC24V, CV max
Power Factor >0.95
Efficiency >85%
Dimming Triac + 0-10V, 5%–100%
IP Rating IP54
Ta / Tc 40°C / 80°C
Class Class 2
Warranty 5 years
Standard ETL (Intertek)

Features

  • Dual dimming: Triac (forward/reverse phase) and 0-10V
  • Smooth 5%–100% flicker-free dimming
  • Class 2 rated for safe low-voltage installations
  • IP54 — suitable for damp locations
  • ETL listed, 5-year warranty
Afficher tous les détails
