Nexled Dimming LED Driver, Class 2, 24V, Multi-Protocol, 192W/288W, IP65 (ETL)(Triac + 0-10V Dimming)

Nexled Dimming LED Driver, Class 2, 24V, Multi-Protocol, 192W/288W, IP65 (ETL)(Triac + 0-10V Dimming)

$150.00 CAD
$150.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Wattage

NEXLEDS High-Power Dimming LED Driver — DC24V, Multi-Protocol, Class 2 (Triac + 0-10V Dimming)

High-capacity constant-voltage dimming driver with universal protocol support: Triac/Phase-cut/ELV/MLV, 0-10V, 1-10V, RX, and 10VPWM. Multiple Class 2 outputs (4000mA each), IP65 enclosure, and 110–277V input for residential and commercial jobs. Backed by a 7-year warranty.

Specifications

Models NX-LVD-19224-D (192W) / NX-LVD-28824-D (288W)
Output Current 192W: 8000mA (2×4000mA) · 288W: 12000mA (3×4000mA)
Input Voltage 110~277V AC, 50-60Hz
Input Current 192W: 2.0A · 288W: 2.98A
Output Voltage DC24V, CV max
Power Factor >0.95
Efficiency >85%

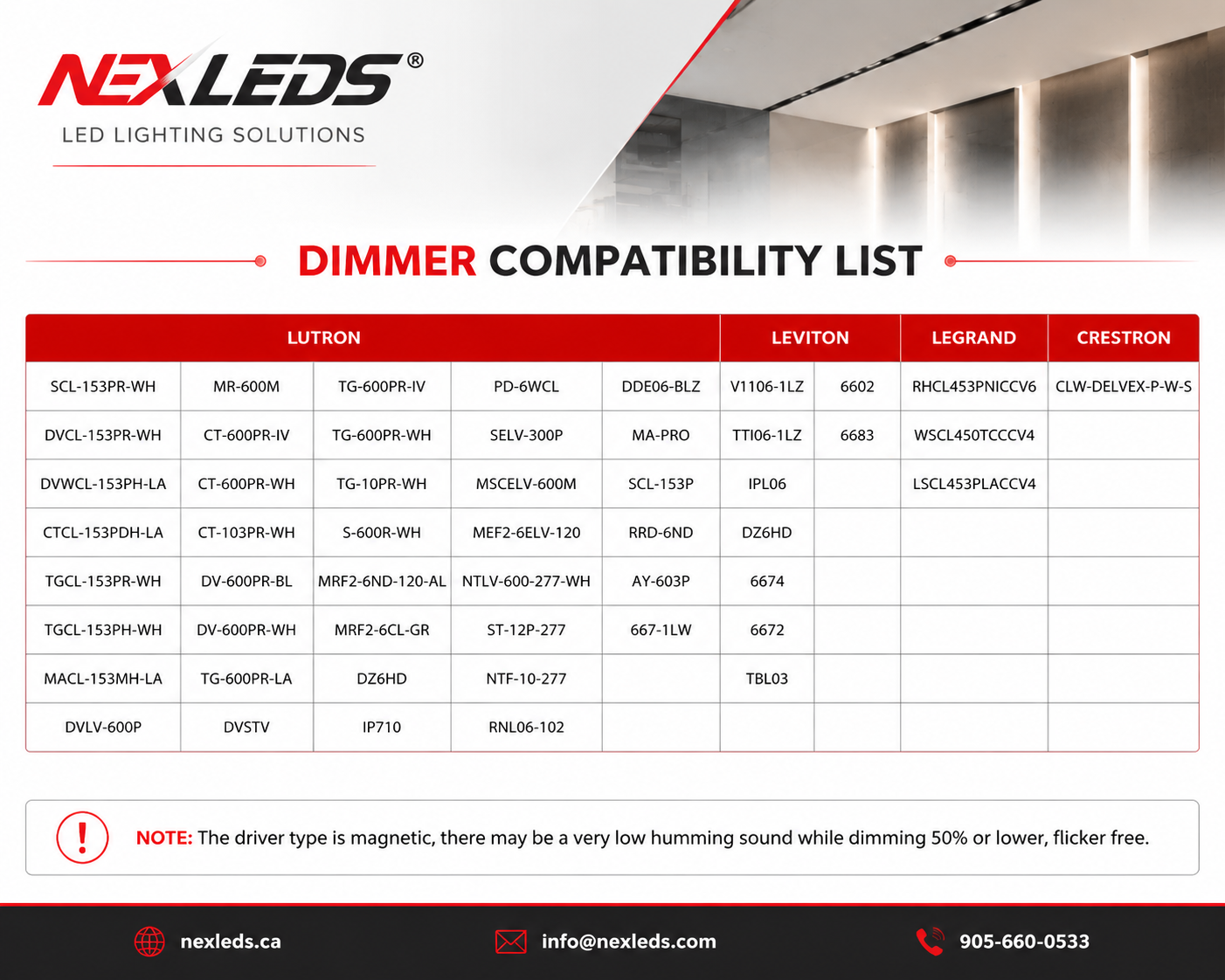

Dimming 1. Triac / Phase-cut / ELV / MLV · 2. 0-10V · 3. 1-10V · 4. RX · 5. 10VPWM
IP Rating IP65
Class Class 2 (multiple outputs)
Warranty 7 years
Standard ETL (Intertek)

Features

  • Five dimming protocols in one driver — works with virtually any dimmer
  • Multiple Class 2 4000mA outputs for long strip runs
  • Universal 110–277V input for commercial voltages
  • IP65 — suitable for wet locations
  • ETL listed, 7-year warranty
