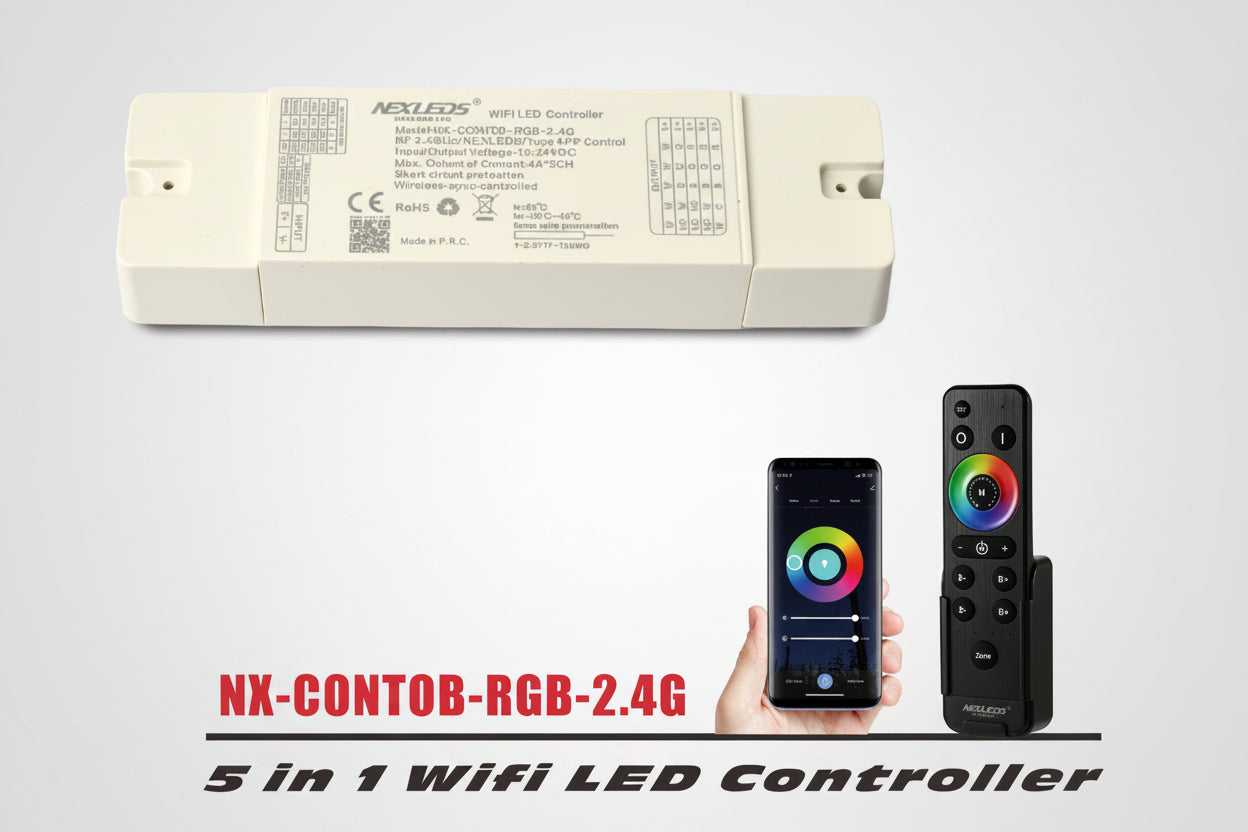

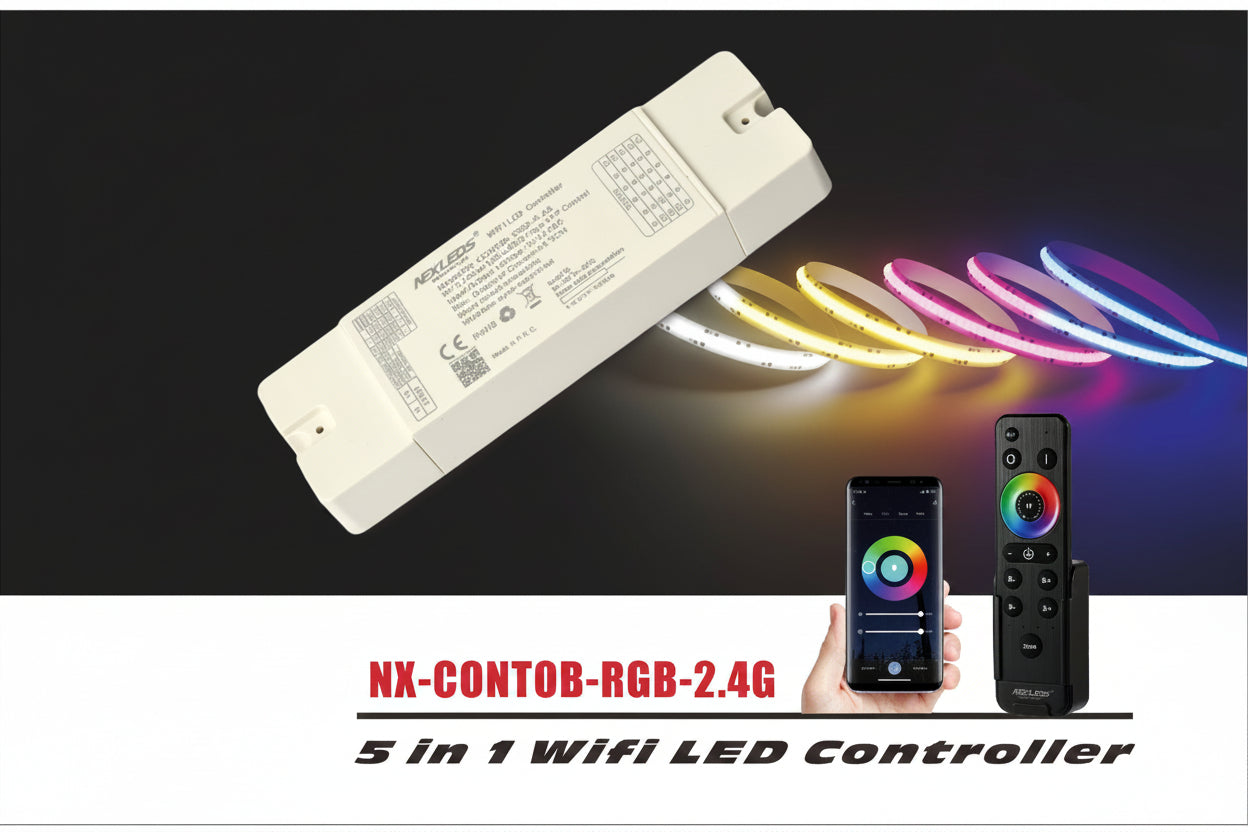

One controller for every strip type: single-color dimming, tunable white (CCT), RGB, RGBW, and RGBCW. WiFi app control plus a 2.4GHz RF remote, with up to 4A per channel output. The universal companion for the NEXLEDS 24V strip light range.

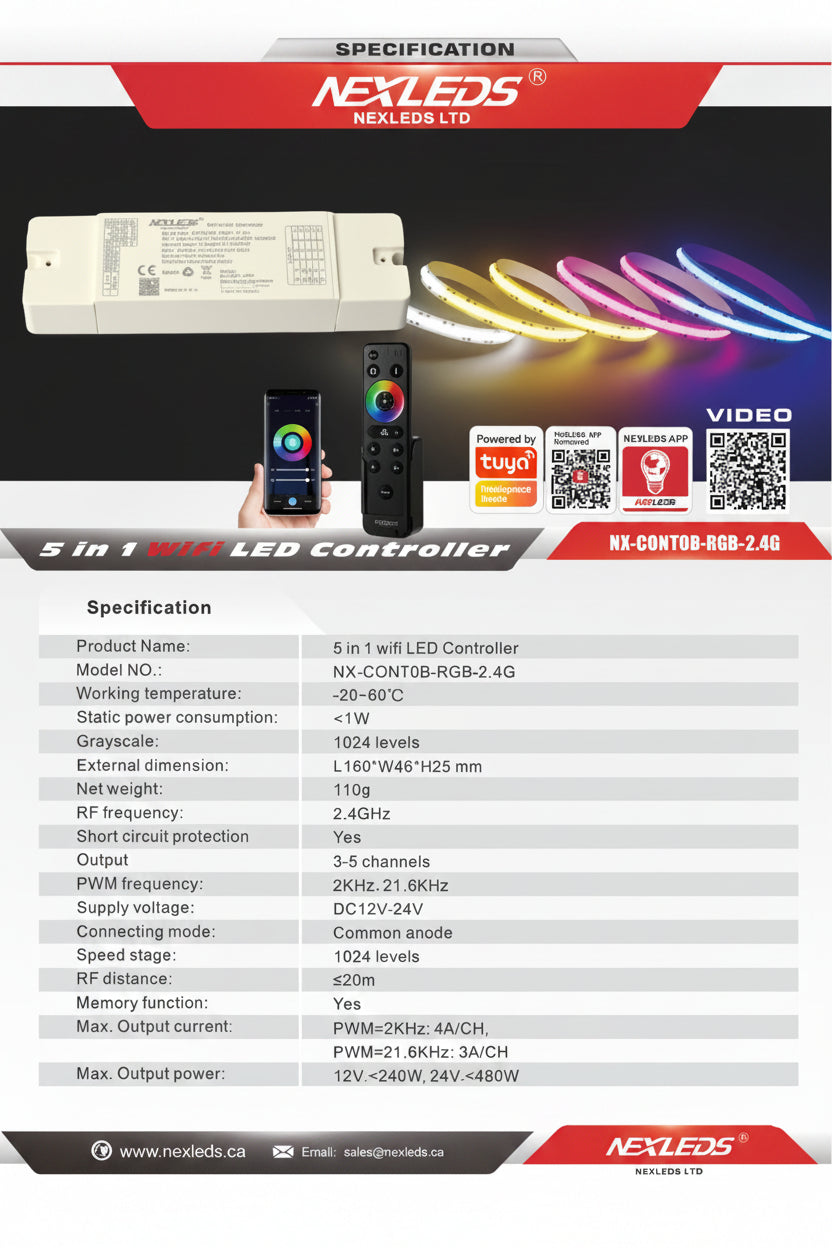

Specifications
Model No.
NX-CONT0B-RGB-2.4G
Supply Voltage
DC12-24V
Output
3–5 channels, common anode
Max. Output Current
PWM 2KHz: 4A/CH · PWM 21.6KHz: 3A/CH
Max. Output Power
12V: <240W · 24V: <480W
PWM Frequency
2KHz / 21.6KHz
Grayscale
1024 levels
Speed Stages
1024 levels
RF Frequency
2.4GHz
RF Distance
≤20 m
Short Circuit Protection
Yes
Memory Function
Yes
Static Consumption
<1W
Working Temperature
-20~60°C
Dimension
L160 × W46 × H25 mm
Net Weight
110 g
Features
5-in-1: dimming, CCT, RGB, RGBW, and RGBCW strips
WiFi smartphone app + 2.4GHz RF remote control
Up to 480W output at 24V with short-circuit protection
1024 grayscale and speed levels for smooth transitions
